Place of Origin : Shenzhen,China
Brand Name : GT-Link
Certification : ISO,CE,RoHS,GGS
Model Number : GT-GYFTY5333
Installation : Submarine,Underwater
Strength Member : Steel Tape/Aluminiu Tape
Sheath Material : PE,LSZH,PVC,TPU
Fiber Number : 2~288
Package : 2KM/3KM
Operating temperature : -40~+60°C
OEM : Available
Model Type : Stranded Loose Tube
Loose Tube Material : PBT
Diameter Cable : 10.0-12.0mm
Fiber Type : single mode or multi mode
Structure : Three Jackets
MOQ : 10km
Price : USD0.1~0.5/M
Packaging Details : Packaging Details:1.wooden roller with test report 2.1000m/roller,2000m/roller,3000m/roller,4000m/ro
Delivery Time : 5-15days
Payment Terms : L/C T/T Western Union
Supply Ability : 1000 Kilometer/Kilometers / Week
Shipping Port : Shenzhen
Description: Submarine Armored Steel wires GYTA53-33 optical fiber cable
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. And a PSP is longitudinally applied over the inner sheath, the cable is covered with a PE outer sheath. After the single-steel armored, the cable is finally completed with an outer sheath.
I. Fiber optical cable GYTA53-33 Characteristics
II. Fiber optical cable GYTA53-33 Standards
GYTA5333 cable complies with Standard YD/T 901-2001as well as IEC 60794-1
III. Fiber optical cable GYTA53-33 Application
IV.Fiber optcial cabel GYTA53-33 Detail Parameters
Structure | Unit | Parameter | ||
Fiber count | fibers | 24,36 | 48,64 | |
Loose tube Diameter | mm | NomΦ.1.9/1.3 | NomΦ.2.2/1.55 | |
Cores of per tube (no more than) | -- | 6 | 12 | |
Central strength member diameter | mm | Nom.2.0 | Nom.2.2 | |
Element | -- | 6 | 6 | |
Cable diameter | mm | Nom.13.7 | Nom.14.5 | |
Weight | Kg/km | Approx.207 | Approx.235 | |
Tensile strength | Long term | N | 1000 | |
Short term | N | 3000 | ||
Crush Resistance | Long term | N | 1000 | |
Short term | N | 3000 | ||
Bending Radius | Dynamic | -- | ≥25×Cable Diameter | |
Static | -- | ≥12.5×Cable Diameter | ||
Operating Temperature | °C | -40 --- +60 |
Technical Parameter:
Part NO: Increased by 2 fiber | Fiber Count | Tubes | Fillers | Cable OD (mm) | Cable Weight(kg/km) |
GYTA53+33-2~6 | 2~6 | 1 | 5 | 22.1 | 819 |
GYTA53+33-8~12 | 8~12 | 2 | 4 | 22.1 | 819 |
GYTA53+33-14~18 | 14~18 | 3 | 3 | 22.1 | 819 |
GYTA53+33-20~24 | 20~24 | 4 | 2 | 22.1 | 819 |
GYTA53+33-26~30 | 26~30 | 5 | 1 | 22.1 | 819 |
GYTA53+33-32~36 | 32~36 | 6 | 0 | 22.1 | 819 |

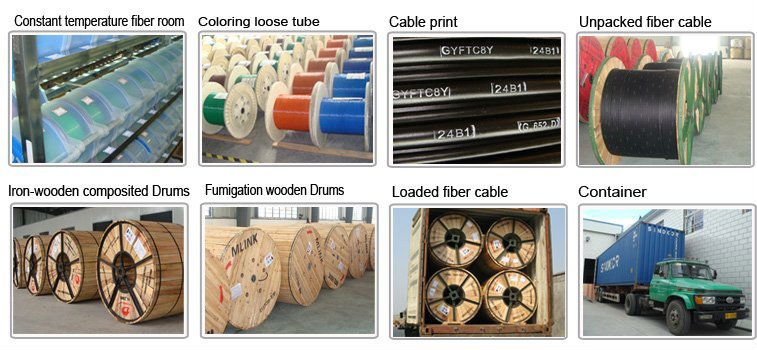

Package:
![]() |
Submarine Armored Steel wires GYTA53-33 optical fiber cable Images |
